arts and crafts style nightstand
magnify
arts and crafts style Nightstand
Overview At UNIQUEPROJECTS we focus on providing our users with unique project plans. To keep our endeavor afloat, however, we occasionally work on other projects. Here is an overview of a nightstand that we made out of walnut.
Scale Drawing We have provided a scale drawing for the nightstand; you will need the Acrobat Reader installed on your computer to view and/or print it.

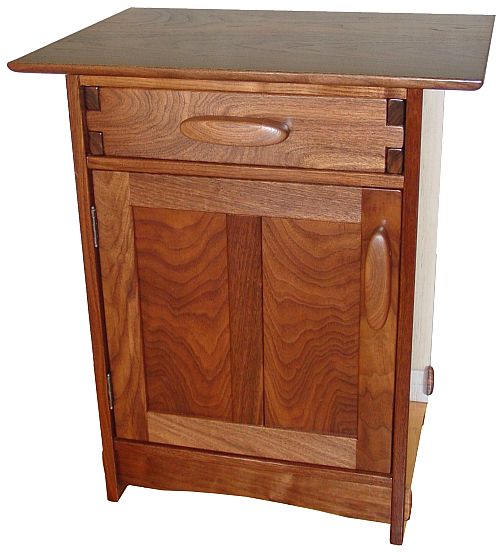

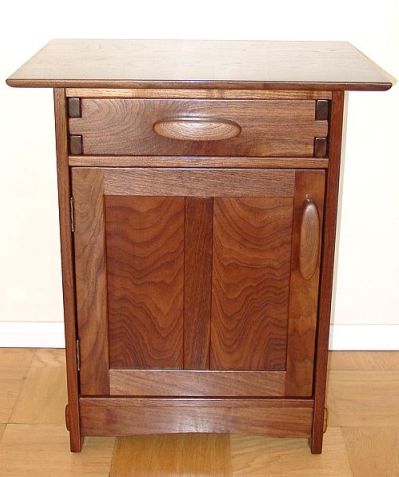

This arts and crafts style nightstand was created out of some beautiful walnut. The entire front, including the door, pulls and drawer front was made from a single board to ensure consistent color and grain pattern. The door frame is constructed with haunch mortise and tenon joinery and its panels are bookmatched. The front drawer panel is dovetailed into the sides. The stretchers between the side panels have through tenons and you can just see them poking out at the bottom of the picture. The top is fastened to the carcass with figure eight fasteners. arts and crafts style nightstand
